CSG21L/CSG22L
CSG21L/CSG22L

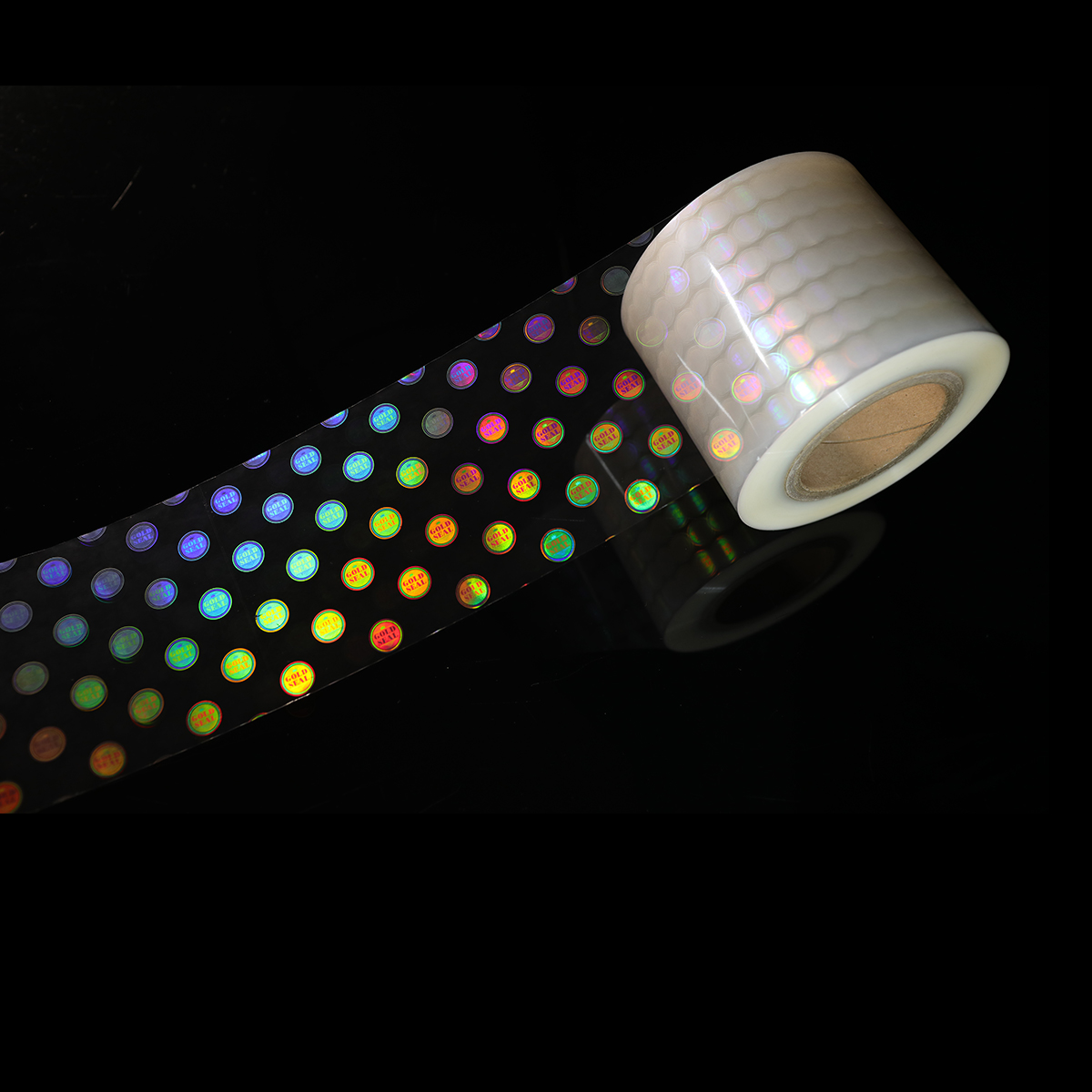

The CSG anti-counterfeit series is suitable for all wrapping machines and for use as individual small pack and carton overwrap.
Customized anti-counterfeit images design for different customers
Laser holographic anti-counterfeit images are visible from different angles and makes it a direct and non-destructive product identification
Improved anti-counterfeit by inputting laser encrypted data with a national patent technique
Excellent transparency and optical properties keep the original printing visibility after packaging
Properties | Unit | Typical Values | Test Standards | ||||
CSG21L | Shiner Standard | National Standard | International Standard | ||||
Density | g/cm³ | 0.92 | ASTM D1505 | ||||
Thickness | μm | 21 | Q/SN2 | GB/T6672-86 | |||
Unit Weight | g/㎡ | 20.46 | |||||
Yield | ㎡/kg | 48.88 | |||||
Tensile Strength | MD | N/m㎡ | 184 | Q/SN2 | GB/T1040-92 | ASTM D882 | |
TD | 285 | ||||||
Shrinkage | MD | % | 8.1 | Q/SN2 | GB/T12026-89 | ASTM D1204-89 | |
TD | 8.7 | ||||||
Elongation at Break | MD | % | 180 | Q/SN2 | GB/T1040-92 | ASTM D882 | |
TD | 59 | ||||||
Young's Modulus | MD | N/m㎡ | 2200 | Q/SN2 | ASTM D882 | ||
TD | 3875 | ||||||
Heat-seal Strength | N/15mm | 2.5 | Q/SN2 | ZBY28004 | ASTM F88-94 | ||
Heat-seal Temperature | ℃ | 120~150 | Q/SN2 | ZBY28004 | ASTM F88-94 | ||
Coefficient of Friction (film/film) | 0.20 | Q/SN2 | GB/T10006-88 | ASTMD1894-93 | |||
Haze | % | <0.2 | Q/SN2 | GB2410-80 | ASTMD1003-95 | ||
Gloss(45°) | % | 89.0 | Q/SN2 | GB8807-88 | ASTM D2457 |
MD Machine direction
TD Transverse direction
The figures and data given above are consistent with the current state of our knowledge and are intended to provide general information about our products and their applications.
They do not constitute a guarantee of any specific product attributes or the suitability ofproducts for specific applications.
