CSC21C/CSC22CC

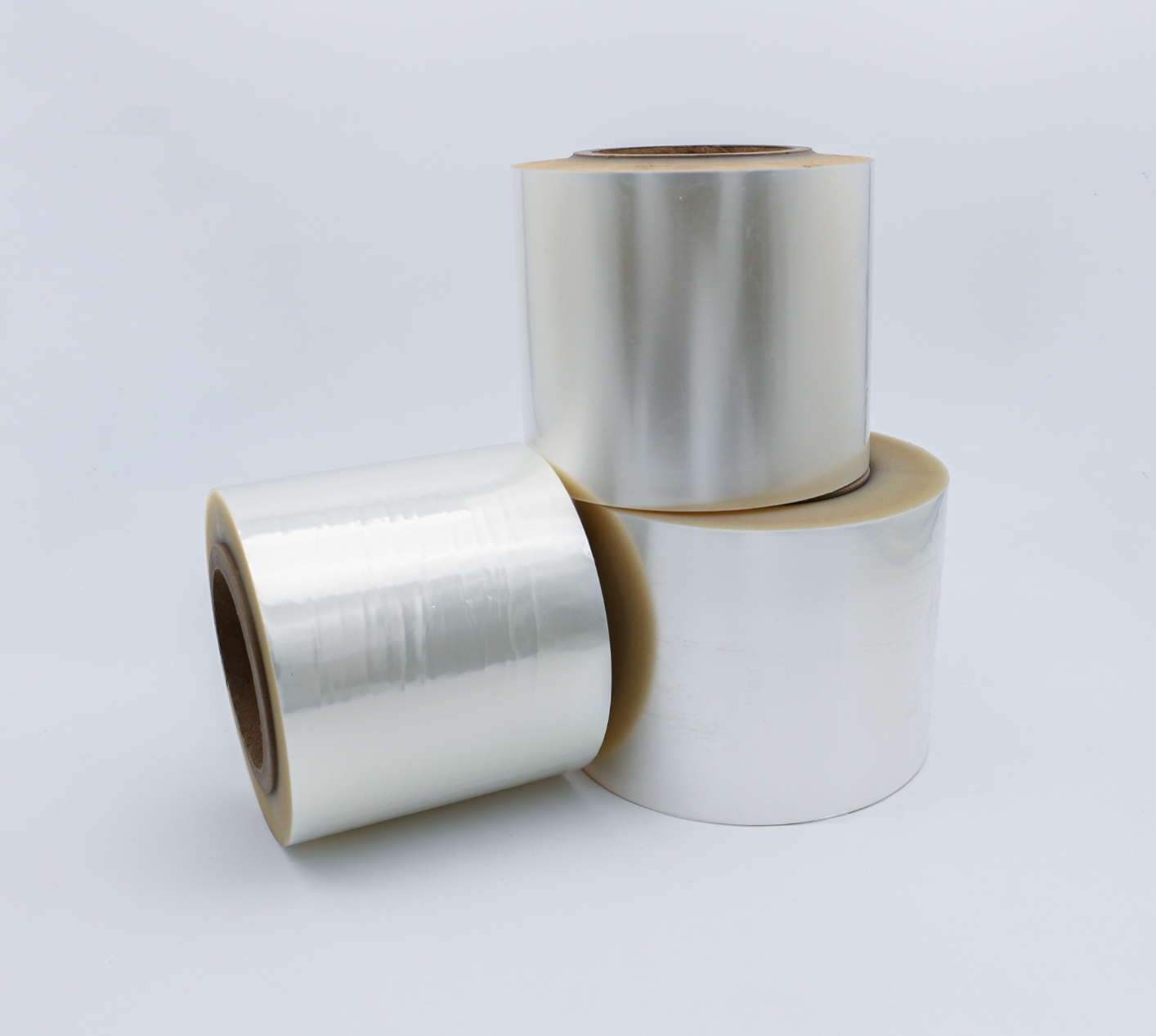

It is a specialized biaxially oriented polypropylene film for tobacco packaging, providing micro-shrinkage for secure wrapping and excellent barrier properties.
CSC21C/CSC22CC
It is a specialized biaxially oriented polypropylene film for tobacco packaging, providing micro-shrinkage for secure wrapping and excellent barrier properties.
The CSC anti-counterfeit series is compatible with all wrapping machines and is ideal for use in individual small packs and carton overwraps.
Superior optical properties
A specific shrink property for promotional purposes on soft pack overwraps.
Broad sealing range and excellent heat-sealing property are maintained even at low temperatures.
The good hot slip property and differing coefficient values on both film sides ensure tight-fitting packaging.
High Young' s modulus and tensile strength values.
Good printing properties ensure clear and solid printing quality.
Properties | Unit | Typical Values | Test Standards | ||||
CSC21C | Shiner Standard | National Standard | International Standard | ||||
Density | g/cm³ | 0.92 | ASTM D1505 | ||||
Thickness | μm | 21 | Q/SN2 | GB/T6672-86 | |||
Unit Weight | g/㎡ | 19.3 | |||||
Yield | ㎡/kg | 51.8 | |||||
Tensile Strength | MD | N/m㎡ | 165 | Q/SN2 | GB/T1040-92 | ASTM D882 | |
TD | 292 | ||||||
Shrinkage | MD | % | 4.8 | Q/SN2 | GB/T12026-89 | ASTM D1204-89 | |
TD | 5.0 | ||||||
Elongation at Break | MD | % | 165 | Q/SN2 | GB/T1040-92 | ASTM D882 | |
TD | 60 | ||||||
Young's Modulus | MD | N/m㎡ | 2350 | Q/SN2 | ASTM D882 | ||
TD | 4100 | ||||||
Heat-seal Strength | N/15mm | 2.58 | Q/SN2 | ZBY28004 | ASTM F88-94 | ||
Heat-seal Temperature | ℃ | 110~150 | Q/SN2 | ZBY28004 | ASTM F88-94 | ||
Coefficient of Friction (film/film) | 0.22 | Q/SN2 | GB/T10006-88 | ASTMD1894-93 | |||
Haze | % | 1.0 | Q/SN2 | GB2410-80 | ASTMD1003-95 | ||
Gloss(45°) | % | 92.0 | Q/SN2 | GB8807-88 | ASTM D2457 |
MD Machine direction
TD Transverse direction
The figures and data given above are consistent with thecurrent state of our knowledge and are intended to provide general information about our products and their applications.
They do not constitute a guarantee of any specific product attributes or the suitability cf products for specific applications.
